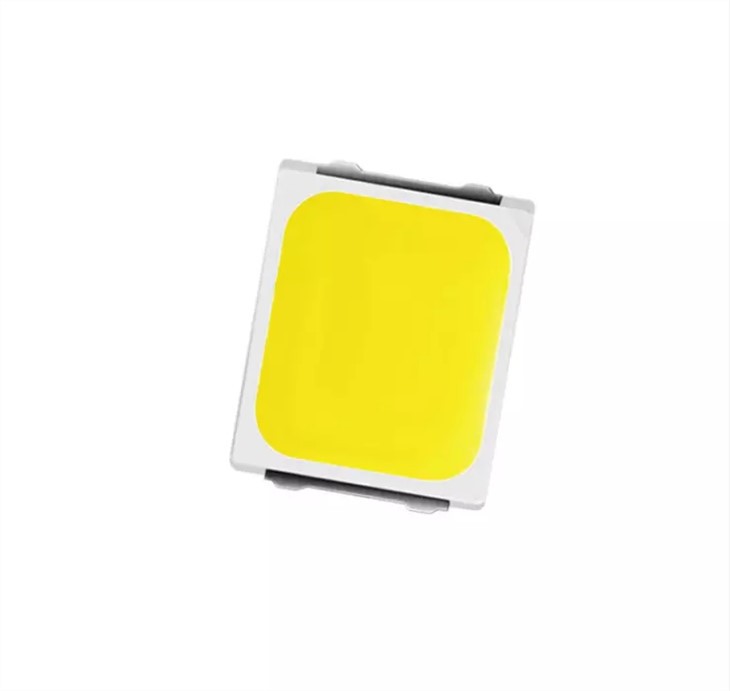

Led diode

led module smd 2835

Produktegenskaber for smd led 2835 1med fuld spektrum:

Chipmærke: Sanan, Epistar, CREE osv.

Farvegengivelsesindeks: 70; 80; 90

Lysstrøm: 20-22LM; 24-26LM; 27-30LM; 30-32LM; 50-55LM; 55-60LM; 60-65LM; 65-70LM;

Fremadspænding: 3V, 6V, 9V, 18V, 36V, 48V

Specifikationer:

2835 LED-SERIEN SPECIFIKATION
produktnavn	Lys farve	CCT/bølgelængde	Spænding	Nuværende	Lumen	Bemærkninger
0.2W 2835 LED	Guld Gul	1800-2000K	2.8-3.4V	60mA	24-30LM	CRI80,90
0.2W 2835 LED	hvid	3000-6500K	2.8-3.4V	60mA	24-34LM	CRI80,90,96 plus
0.5W 2835 LED	hvid	3000-6500K	2.8-3.4V	150mA	55-75LM	CRI80,90,96 plus
1W 2835 LED	hvid	3000-6500K	6/9/18/36V	150/100/50/30mA	90-150LM	Højspændings-serien
2835 UV LED	UV	365-410nm	3/6/9V	60/150/175/100mA	/	0.2W, 0.5W, 1W
2835 Blå LED	Blå	440-470nm	3/6/9V	60/150/175/100mA	4-20LM	0.2W, 0.5W, 1W
2835 Grøn LED	Grøn	520-530nm	3/6/9V	60/150/175/100mA	18-80LM	0.2W, 0.5W, 1W
2835 Amber LED	Gul/rav	590-610nm	2/4/6V	60/150/175/100mA	6-20LM	0.2W, 0.5W, 1W
2835 Rød LED	Rød	620-630nm	2/4/6V	60/150/175/100mA	8-30LM	0.2W, 0.5W, 1W
2835 Far Rød	Langt rød	660-665nm	2/4/6V	60/150/175/100mA	3-12LM	0.2W, 0.5W, 1W
2835 IR LED	IR	730-750nm	2/4/6V	60/150/175/100mA	/	0.2W, 0.5W, 1W
2835 IR LED	IR	850 nm	2/4/6V	60/150/175/100mA	/	0.2W, 0.5W, 1W
2835 PC Blå	Fosfor blå	450-470nm	3/6/9V	60/150/175/100mA	6-30LM	0.2W,0.5W,1W Tilpasset WD,WP
2835 PC Grøn	Fosforgrøn	510-530nm	3/6/9V	60/150/175/100mA	18-120LM
2835 PC farve	Fosfor Rav/Rød	600-630nm	3/6/9V	60/150/175/100mA	10-60LM
